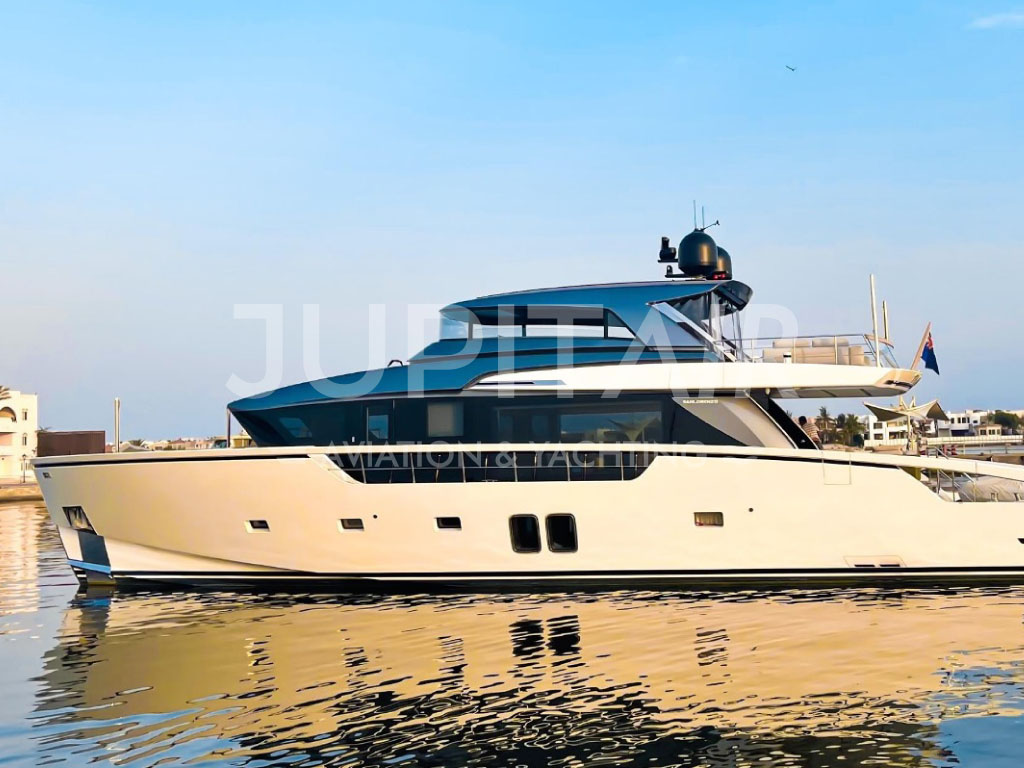

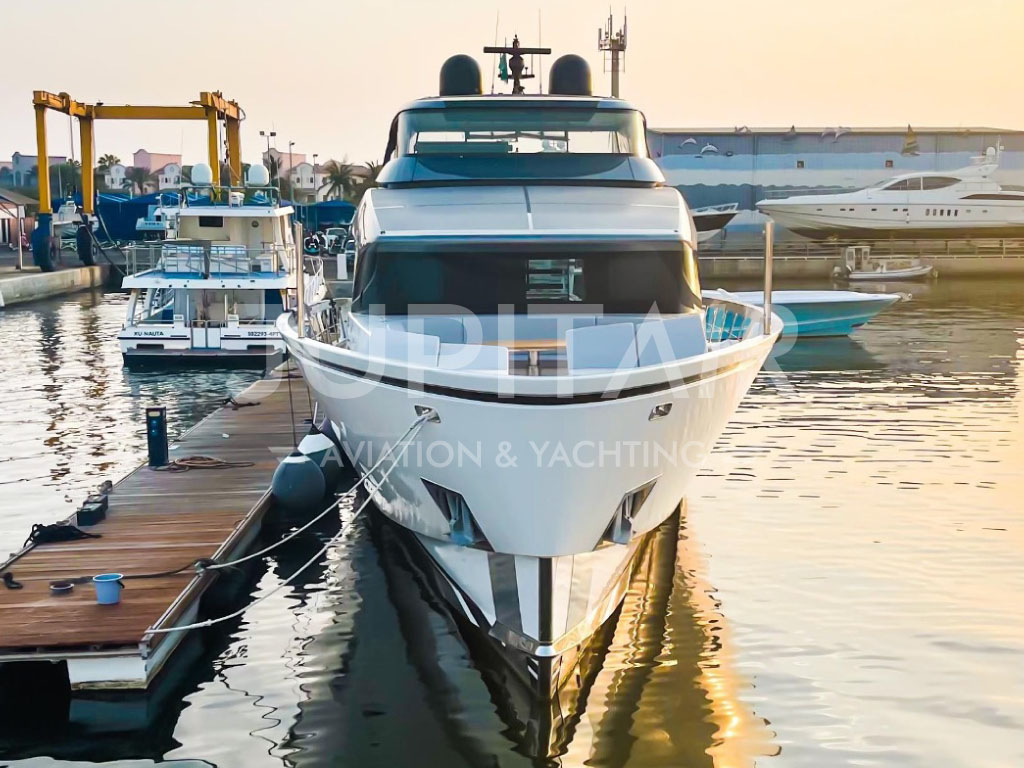

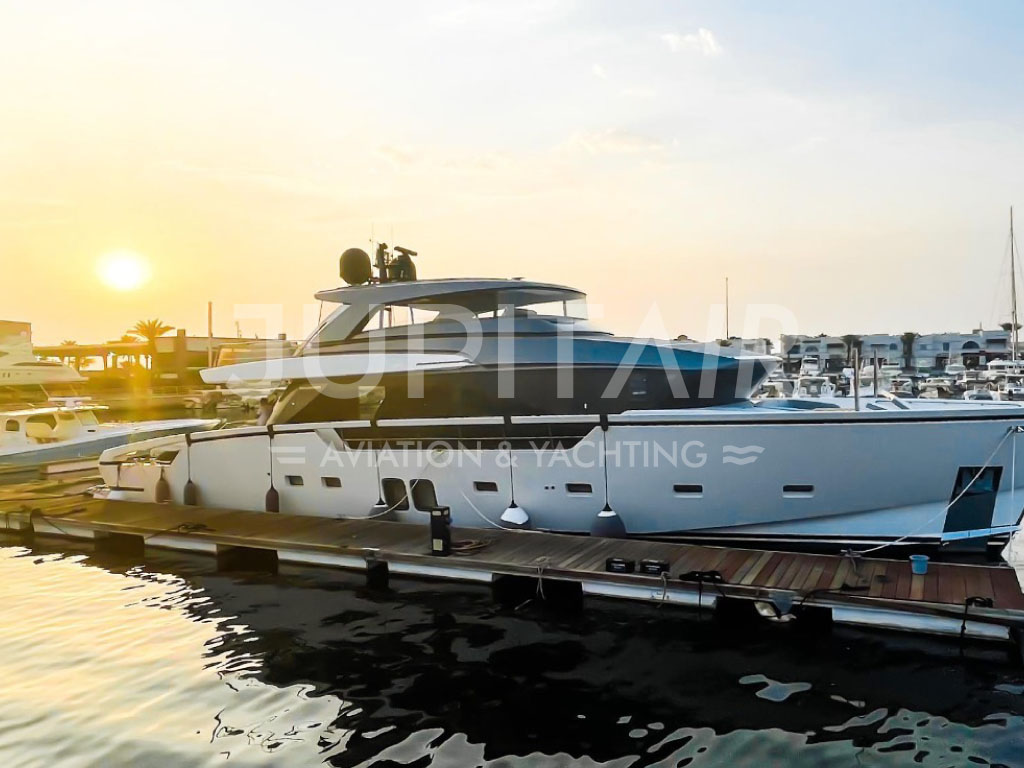

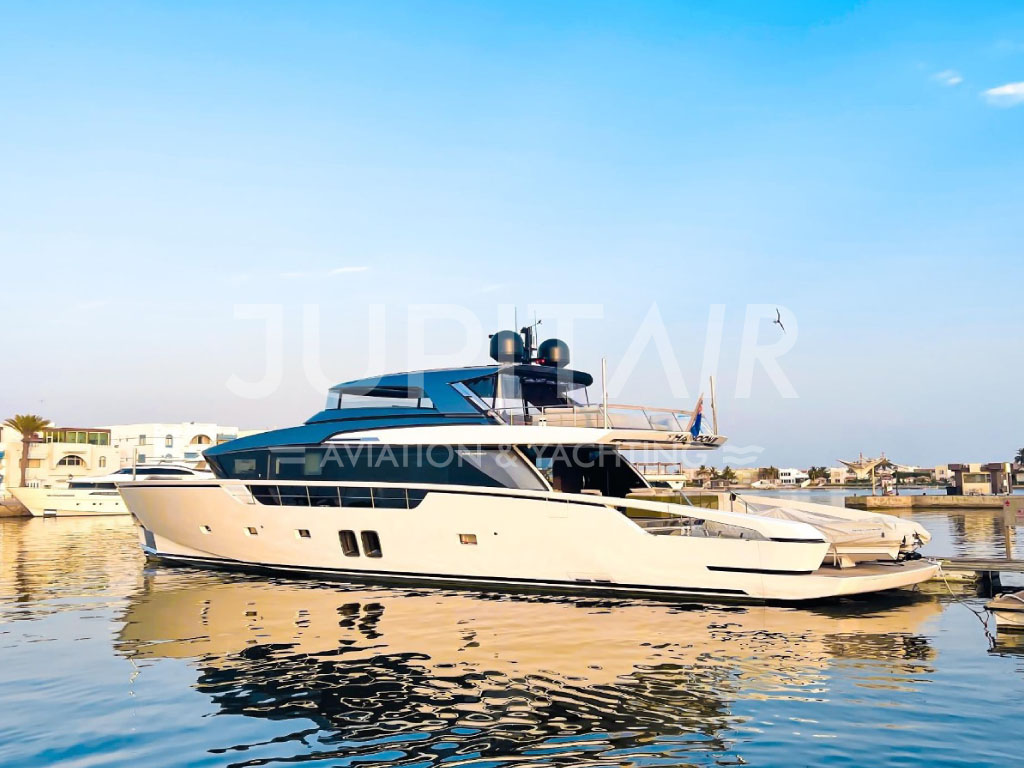

Sanlorenzo – SX88
Specifications
- Lengthoverall: 26,70m
- Maximumbeam: 7,20m
- Constructionheight: 3,25m
- Displacement @ half load: 82t
- Displacement @ full load: 88t
- Waterline length @ halfload: 23,45m
- Waterline length @full load: 23,51m
- Draught @half load: 1,68m
- Draught @full load: 1,70m
- Guestaccommodation: 8people
- Crewaccommodation: 3people
- Engine: 3XIPS31050VOLVOD13B-800HP
- Consumption (approx): 3 x 125 l/h @2200 rpm
- Poweroutput@100%MCR: 3x588kW@2300rpm
- Gearbox: 3 xIPS3
- Transmission: 3 xIPS3
- Propeller: Volvo IPSpropellers
- Shafts: N/A
- Gensets: 1x25kW+1x20kW
- Rudders: N/A
- Maximum speed (approx): 23kn
- Cruising speed (approx): 20kn
- Economical speed (approx): 10kn
- Max range @ economical speed(approx.): 1210nm
- Deadrise: 15°
- A/Cpower: 144.000btu/h
- Fuelcapacity: 9300l
- Fresh watercapacity: 2000l
- Black watercapacity: 550l
- Grey watercapacity: 550l
- Tenderlength: max 4,50m
- Tenderweight: max 1000kg
- Engine h : 70
- Generator h : 200
Electrical Appliances
- Battery charger batteries for 25A 12V
- No.2 frequency converter 15 kVA for 220V/60Hz conversion for electrical system
- No.3 additional waterproof 220V socket: no. 1 in flybridge bar cabinet, no. 1 in beach area front storage, no. 1 USB on helm station
Alarms and Controls
- CCTV IP Raymarine: no. 1 fixed in cockpit, no. 1 fixed in engineroom
- Predisposition for additional Raymarine touch 12’’ monitor (ship monitoring system with Empirbus) in crewmess
- Raymarine Integrated dashboard system (ship monitoring) including third additional Raymarine monitor
- Raymarine diamond navigation package (diff. from standard)
- Raymarine UAV system (drone control) –drone not included
- SATELLITE AND COMMUNICATION SYSTEMS (TV SAT)
- KVH TV8 TV-Sat antenna cables predisposition
- KVH TV8 empty radome installation
- SAT TV antenna KVH TV8 – diff. From cable predisposition already in annex 3
- KVH TV8 empty radome (diff. from Annex 3)
- AUDIO AND VIDEO APPLIANCES
- 4G Wi-Fi system with harbour hotspot antenna
- Audio-video gold package (diff. from standard)
- TV 50” in owner’s cabin (diff. from standard)
- TV 43” with hi-lo system on flybridge (cabinet not included)
- No.1 JL M6-10 B -S-4 subwoofers on flybridge
- Karaoke system predisposition on flybridge (karaoke supplied byowner)
- Karaoke system arrangement on flybridge including audio/video system modification (diff. from standard)
- Karaoke Studio Evolution Lite 2 supplied by owner
- Apple TV in salon and flybridge
- No. 2 JL M6-10IB-S-4 subwoofers in beach area
- Predisposition for PS4 in salon (PS4 supplied by owner)
House-hold Appliances
- Icemaker in flybridge bar cabinet
- No. 1 winecooler for 18 bottles in dining area
- No. 1 teppan yaki on flybridge barcabinet

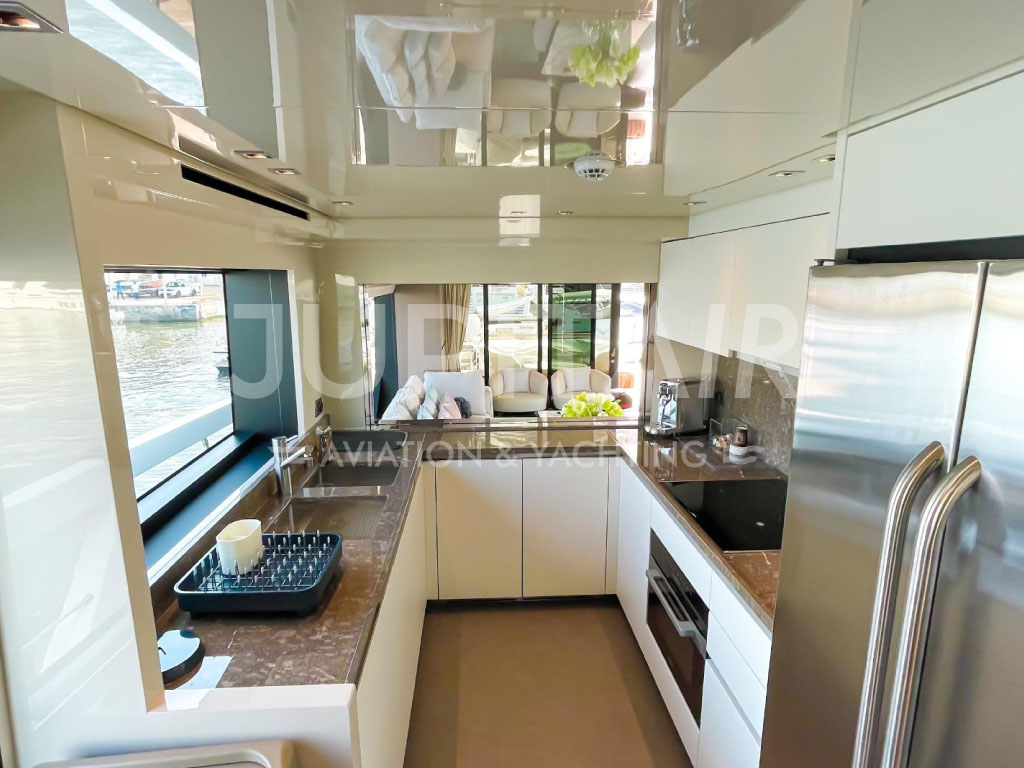

- Combi oven in galley (diff. From standard)
Thrusters and Stabilizers
- Volvo joystick for engines IPS transmissions -second aft cockpit station
- Electric stabilizers (at anchor and under navigation) including upgrade to 35kW generator
Engine Room Equipment
- 180 l/h Idromar watermaker
- 150 liters boiler (diff. fromstandard)
- Upgrade to second 28 kW generator (diff. fromstandard)
- Volvo Dynamic Positioning system (skyhook)
Tender and Jet Ski*
Cradles and hardware fittings for Williams Sportjet 395 tender (tender supplied byowner)
*these options are not subject to anydiscount
Interior Accessories
- Veneer wood floorboard in salon (diff. from standard), dining area, steps to lower deck and steps to flybridge (diff. from standard)
- Super Tuft Santushti rug in salon (to beconfirmed)
- Custom layout for owner’s bathroom with fixed glass (diff. from standard)
- Electric hi-lo system for bow wall in salon (diff. from standard)
- TV 50’’ on the ceiling in salon (diff. from stadard)
- Rimex air conditioning in salon cielining (diff. from standard)
- TV behind stopsol mirror in owner’scabin
- Lacquared bar top in salon in bowarea
- No. 3 Poltrona Frau Le Spighe bar stools in nestleather
- Dimmer package for interiors

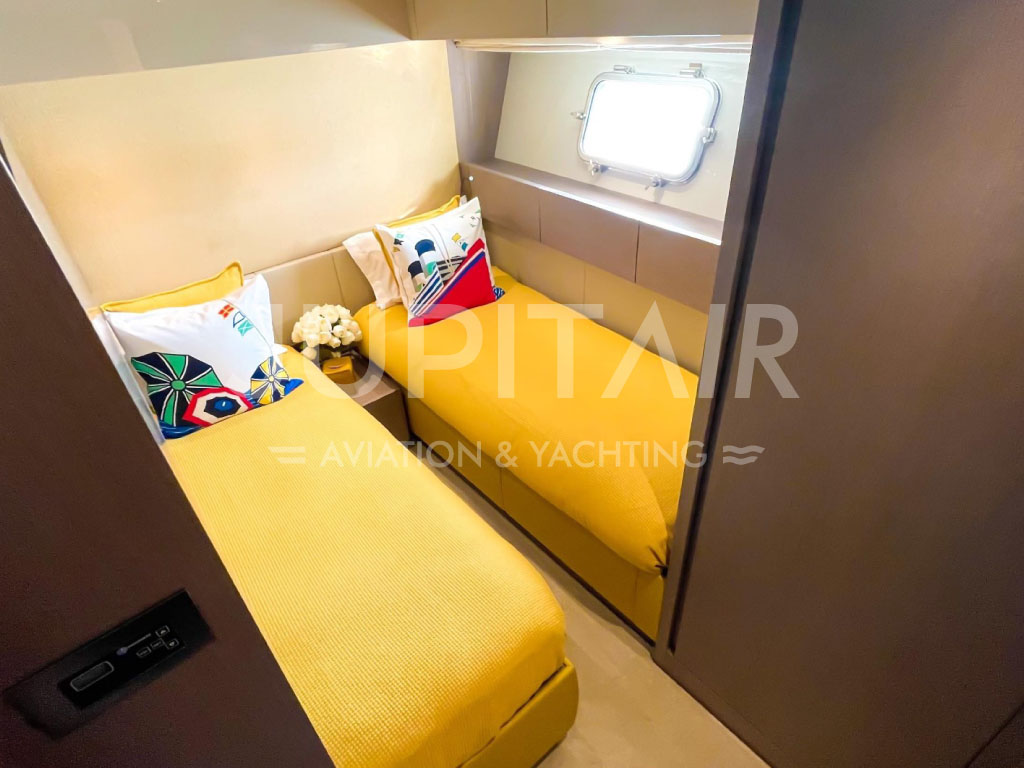

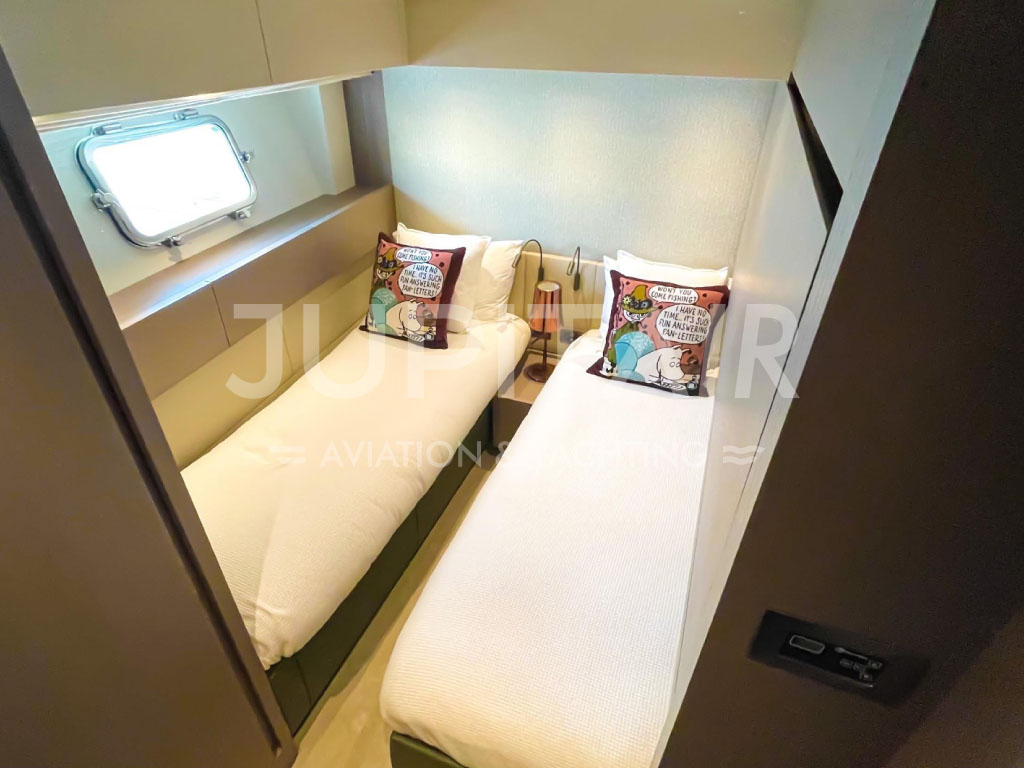

- No. 2 pullman beds in both port and starboard guestcabins
- Sliding bed in port guestcabin
- Ceiling covered in Z&R Focus 951 fabric in every cabin (diff. from standard)
- Guest cabin beds covered in Mastrotto Le Mans 1218 leather (diff. from standard)
- Electric blackout shades in Main deck –tot. n.7
- Wall above the bed in owner’s cabin covered in Z&R Calm 556 fabric (diff. from standard)
- Wall above the bed in portside guest cabin covered in Z&R Cover 192 fabric (diff. from standard)
- Wall above the bed in starboardside guest cabin covered in Z&R Tate 684 fabric (diff. from standard)
- Super Tuft Satara Duck-Egg carpet in salon (diff. from standard)

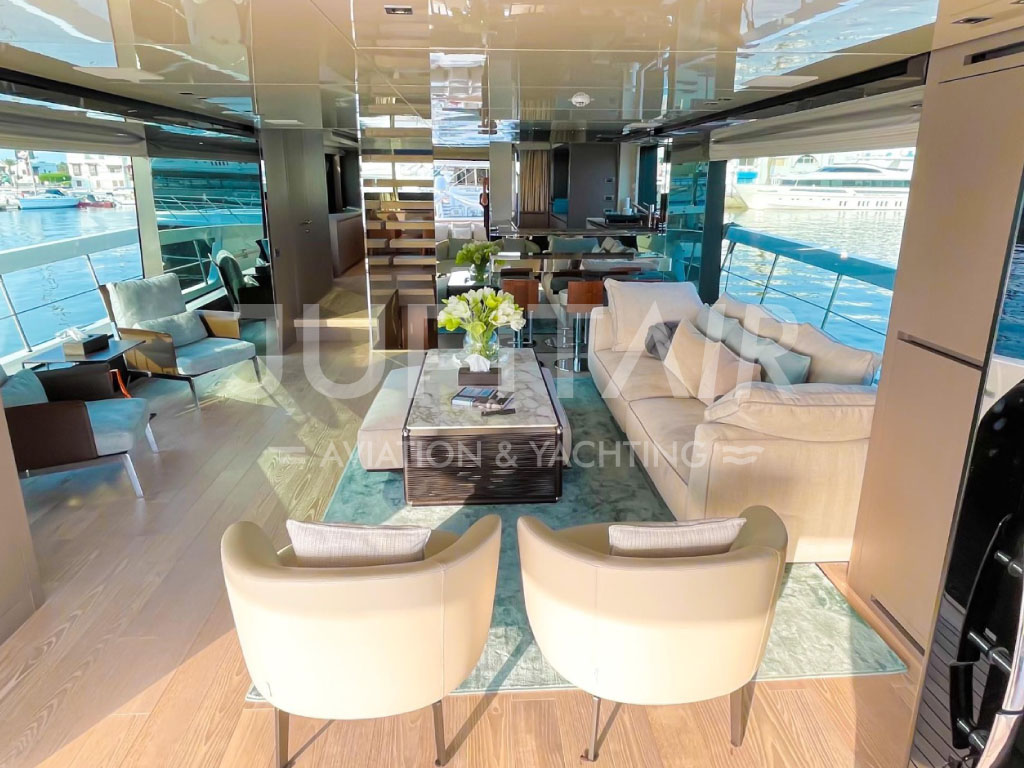

- Flexform Grandemare sofa in Edison 911 fabric in salon (diff. from standard)
- No. 2 Flexform Happy Hour armchairs in salon, in dark brown leather and Edison 917 fabric (diff. from standard)

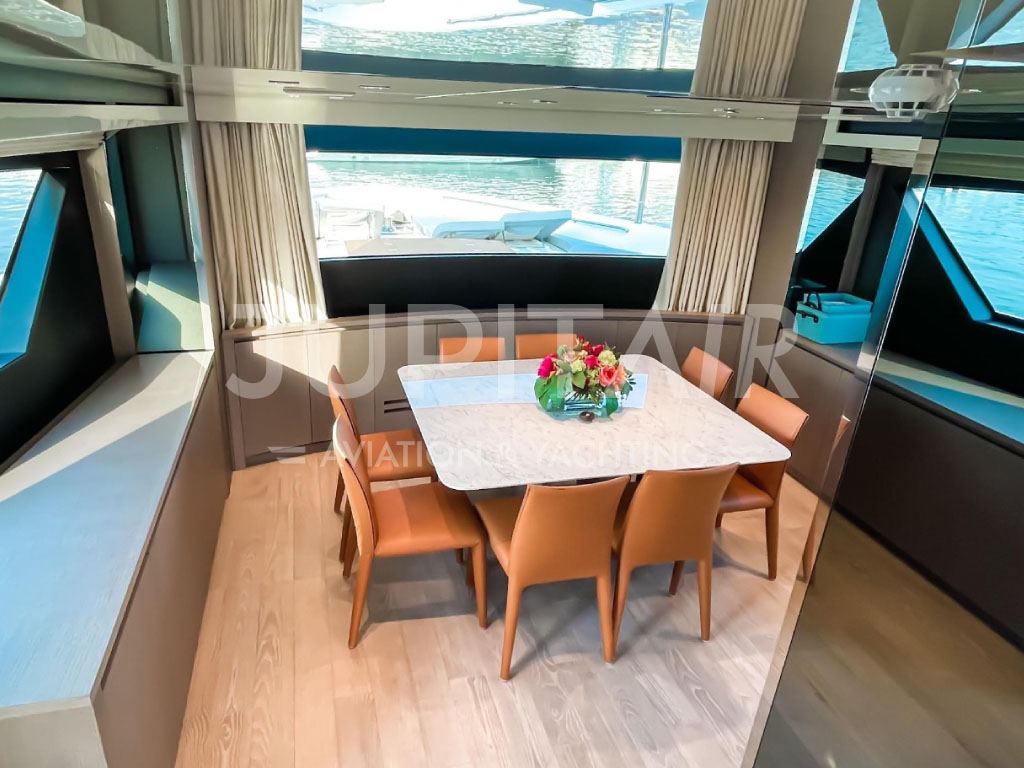

- Custom squared dining table with white Carrara marble polished top and wooden base (diff. from standard)
- No. 1 Minotti Leger side table in salon, black nickel structure and hard leather browntop

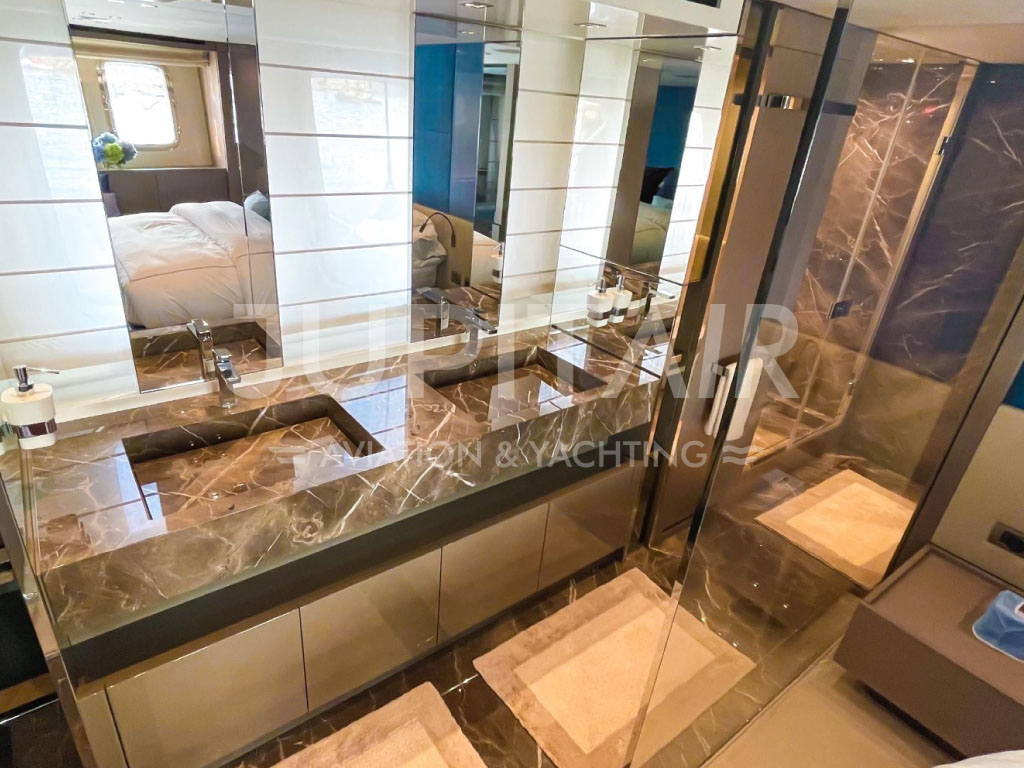

- No. 6 integrated marble sinks in owner’s, vip, guest bathroom and day toilet (diff. from standard)
- No. 6 sinks in Travertino marble integrated into the top in bathroom (diff. from standard)
- No. 3 headshowers (where not standard): no. 1 in vip, no. 2 in guestcabins
- Travertino marble in no. 1 shower’s wall and no. 1 wall in owner’s bathroom (diff. from standard)
- No. 3 manual blackout shades in owner’scabin
Exterior Accessories
- External column shower on flybridge
- Hardtop with electric opening roof system with blades
- Sun awning for the stern area of the flybridge behind the hardtop
- Bow bimini canvas
- Teak deck for flybridge -black caulking
- Air conditioning on flybridge (including teak cabinet modification)
- No. 4 underwater 7000 lumen led lights: no. 2 on aft transom, no. 2 on sides close to the aft, with RGB system
- Swimming platform lifting system
- Backlit boat name letters predisposition
- Dimmer package for exteriors
- Table with hi-lo electric system on flybridge (diff. from standard)
- Bow table with hi-lo manual system and transformation into sunbed, additional cushion included
- Folding reclining backrests for bowsunbeds
- Modification of TV cabinet on flybridge inteak
- Additional custom sofa on starboard side of flybridge inteak
- Additional teak cabinet storage and air conditioning outlets behind the sofa

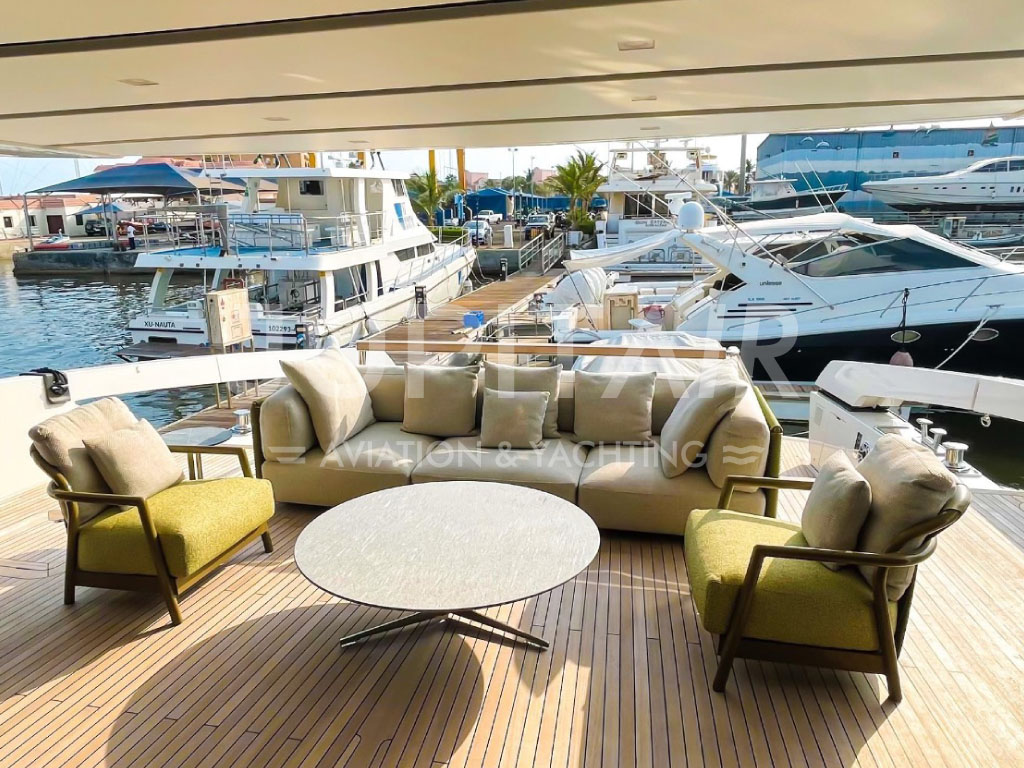

- Flexform Eddy sofa in green cord, Cactus A72 fabric, incockpit
- No. 2 Flexform Alison armchairs in the cockpit, green structure, seat cuschion in Borgonia A69 fabric and back cuschion in Cactus A72 fabric
- No. 1 Flexform Fly coffee table (diam. 120 cm) in the cockpit with “beala argentata” top and inox polished structure
- No. 1 Flexform Fly coffee table (diam. 40 cm) with “pietra del Cardoso” stone top and inox polished structure

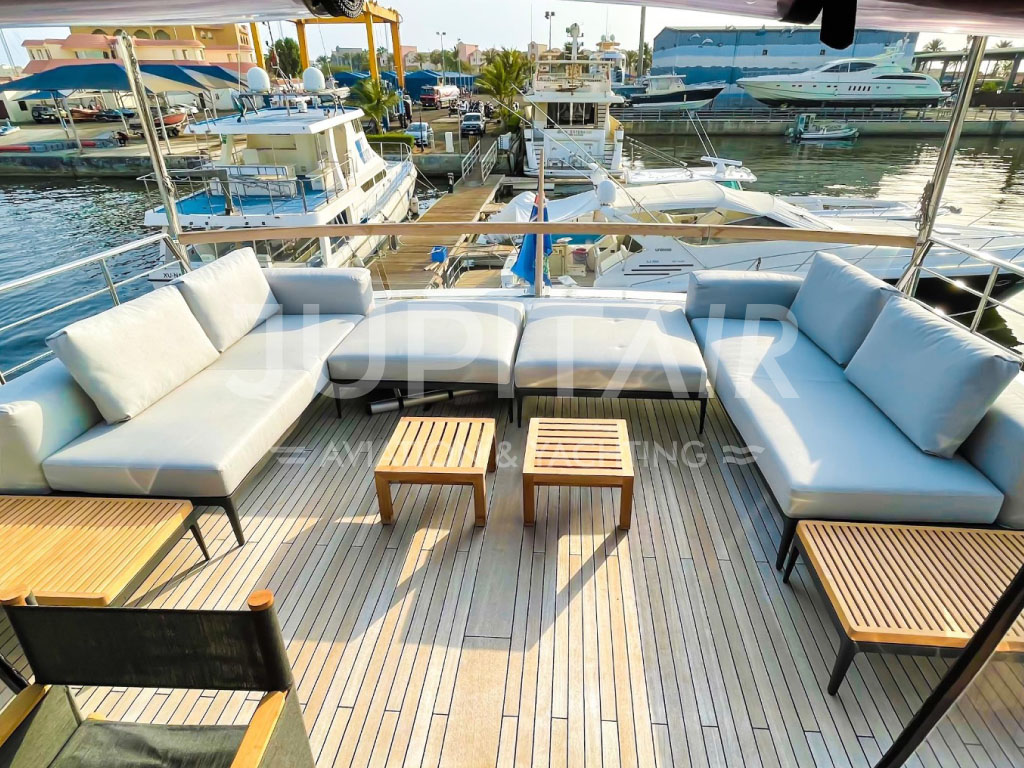

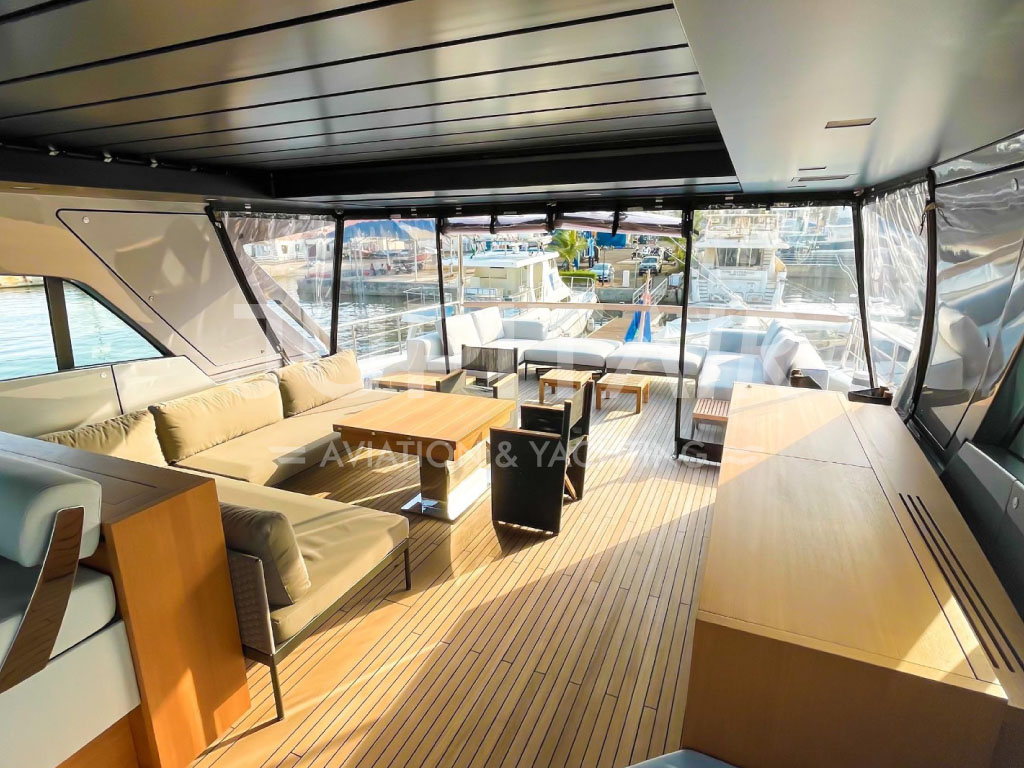

- Roda Eden dining sofa on flybridge in Roda Shore Steel fabric, white teak structure, smoke metal and grey batyline (diff. from standard)
- No. 1 Roda Eden daybed in Roda Shore Steel fabric, white teak structure, smoke metal and grey batyline (diff. fromstandard)
- No. 2 Roda Orson in teak and additional matt in Roda Shore Steel fabric (diff. from standard)
These specifications are presented as introductory information only. They do not constitute representations or warranties of any kind. Accordingly, you should rely on your own inspection of this yacht. The yacht is subject to prior sale, and/or removal from the market.
